Energy storage liquid cooling machine
PRODUCTS&SOLUTIONS
simple connection
Only the power & metering meter communication cable needs to be connected.
Strong compatibility
The three-phase four-wire system is compatible with all single-phase/three-phase loads.
Wireless network
Network through 5G network cards, and upload data to the cloud platform.supports remote upgrade and control system
Convenient configuration
Remote/local EMs Settings, easy to operate Supports remote upgrade and control

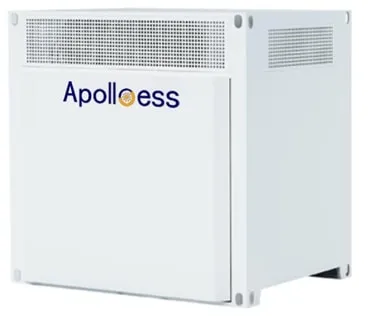

Business cabinet
230 Lithium iron – low form / upriaht form
| State | Existing low form | Existing upright form | |
|---|---|---|---|
| Model Specifications | 691.2V230Ah | 768V230Ah | 832V230Ah |
| Nominal power | 159KWh | 176.6KWh | 191.4KWh |
| Voltage range | 583-788V | 648-876V | 702-949V |
| Dimensions of low form (width * depth * height) | 2000×1450×1300 | 2180×1450×1050 | 2180×1450×1050 |
| Dimensions of upright form (width * depth * height) | 1300*1350*2400 | 1480*1350*2150 | 1480*1350*2400 |
| Box quantity | 6 | 5 | 5 |
| Box type | 115.2V230Ah | 153.6V230Ah | 166.4V230Ah |
| Box layout | 36S1P*6 | 48S1P*5 | 52S1P*5 |
| Cell specification | 3.2V230Ah | 3.2V230Ah | 3.2V230Ah |
| Cell size | 54*173*207 | 54*173*207 | 54*173*207 |
| Use | Business cabinet | Business cabinet | Business cabinet |
| System power | 0.5C liquid cooling | 0.5C liquid cooling | 0.5C liquid cooling |
Business cabinet
280 Lithium iron – low form
| State | Existing | Add | Add |
|---|---|---|---|
| Model Specifications | 691.2V280Ah | 768V280Ah | 832V280Ah |
| Nominal power | 193.5KWh | 215KWh | 233KWh |
| Voltage range | 583-788V | 648-876V | 702-949V |
| Dimensions (width * depth * height) | 2000×1450×1300 | 2180×1450×1050 | 2180×1450×1050 |
| Box quantity | 6 | 5 | 5 |
| Box type | 115.2V280Ah | 153.6V280Ah | 166.4V280Ah |
| Box layout | 36S1P*6 | 48S1P*5 | 52S1P*5 |
| Cell specification | 3.2V280Ah | 3.2V280Ah | 3.2V280Ah |
| Cell size | 71*173*207 | 71*173*207 | 71*173*207 |
| Use | Business cabinet | Business cabinet | Business cabinet |
| System power | 0.5C liquid cooling | 0.5C liquid cooling | 0.5C liquid cooling |

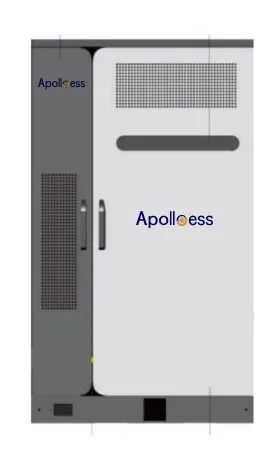

Business cabinet
280 Lithium iron – upright form
| State | Existing | Add | Add |
|---|---|---|---|
| Model Specifications | 691.2V280Ah | 768V280Ah | 832V280Ah |
| Nominal power | 193.5KWh | 215KWh | 233KWh |
| Voltage range | 583-788V | 648-876V | 702-949V |
| Dimensions (width * depth * height) | 1300*1350*2400 | 148013502150 | 1480*1350*2400 |
| Box quantity | 6 | 5 | 5 |
| Box type | 115.2V280Ah | 153.6V280Ah | 166.4V280Ah |
| Box layout | 36S1P*6 | 48S1P*5 | 52S1P*5 |
| Cell specification | 3.2V280Ah | 3.2V280Ah | 3.2V280Ah |
| Use | Business cabinet | Business cabinet | Business cabinet |
| System power | 0.5C liquid cooling | 0.5C liquid cooling | 0.5C liquid cooling |

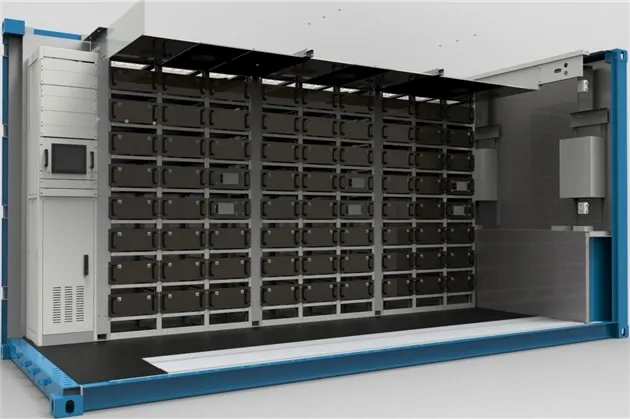

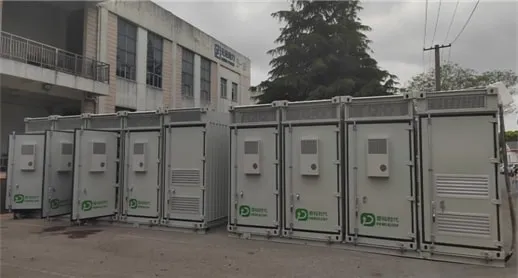

battery container
apolloess.com
| calable modular container design – 20 ft / 40 ft |
|---|
| ◉ Through the Bonneville Electricity Authority (Bonneville Power Administration) Testing |
| ◉ Scalable from 250KW to 100MW + configurations |
| ◉ Using a field proven PCS and battery pack |
| ◉ 81-85% system cycle efficiency |
| ◉ 80% depth of discharge cycle life |
| ◉ Reliable heat balance system |
| ◉ AGC / DRES matching automatic scheduling |
| ◉ Proven power and energy balancing systems |

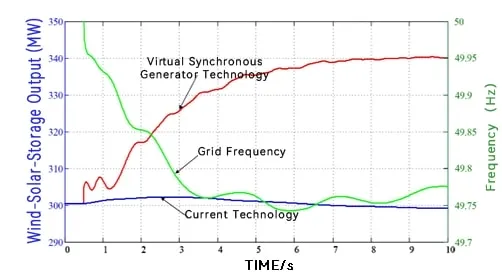

frequency modulated system
Physical compartment isolation ensures safe installation
Reduce installation time by 60% Reduce floor space by 30%
Generation side energy storage -five feet divided bin type container module

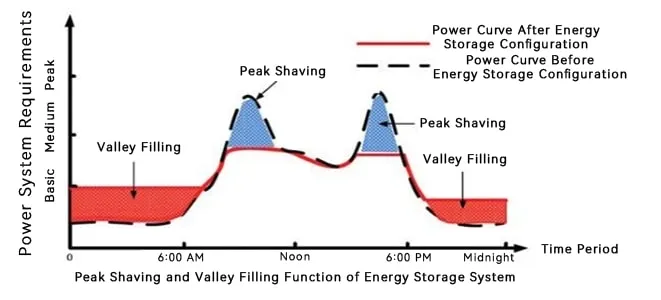

The product is the use of modular design, wind and solar power supporting to ensure a smooth power generation and grid. Through the peak valley arbitrage, peak shaving and frequency modulation and other ancillary services to gain revenue.
| model | Cube 5 6P216S-302 Liquid cooling | Cube 5 6P432S-302 Liquid cooling | Cube5 1P240S-280 Air cooling | Cube5 8P360S-280 Air cooling | Cube10 6P240S-280 Air cooling | Cube10 8P360S-280 Air cooling |
|---|---|---|---|---|---|---|
| Rated power of AC side(kW) | 630 | 1250 | 50/80/100 | 1250 | 630 | 1250 |
| PCS efficiency | 98% | |||||
| Cell capacity | 302Ah | 280Ah | ||||
| Battery cluster capacity(kWh) | 208.74 | 417.48 | 215.04 | 322.56 | 215.04 | 322.56 |
| Pack Series quantity | 6 | 12 | 12 | 18 | 12 | 18 |
| Number of single cluster | 4 | 2 | 1 | 2 | 6 | 4 |
| Charge and discharge ratio | ≤0.5C | |||||

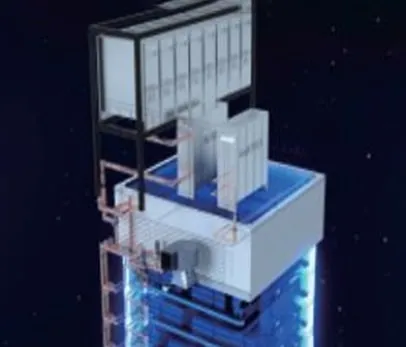

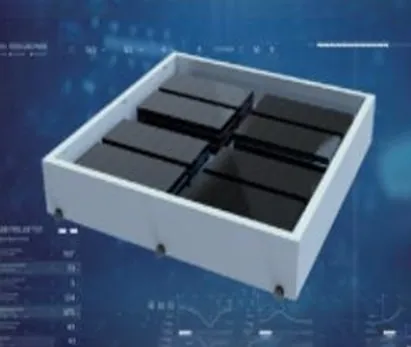

Concrete energy storage system
Apolloess.com
simple connection
Strong compatibility
Wireless network
Concrete energy storage system
Apolloess.com

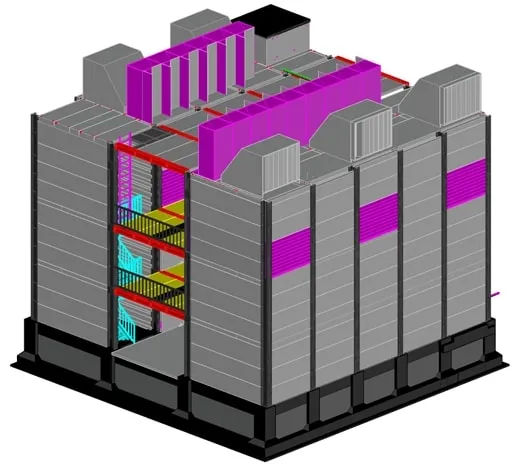

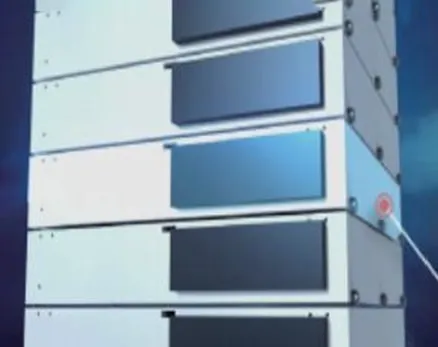

50MWh Stacked Assembled Energy Storage
| elementary unit |
|---|
| AC/DC：35kV /1500V |
| 20 group1.29MW/2.5MWh unit |
| total capacity：25MW/100MWh |
| 14.4714.1810.8m ,cover 205㎡ |
◉ AC and DC highly integrated, small footprint, 50MWh covers an area of < 200 square meters
◉ the use of high fire separation design, the overall fire resistance rating of 4 hours
◉ the use of ice cold storage technology, energy storage, cold storage greatly improve the efficiency of the system

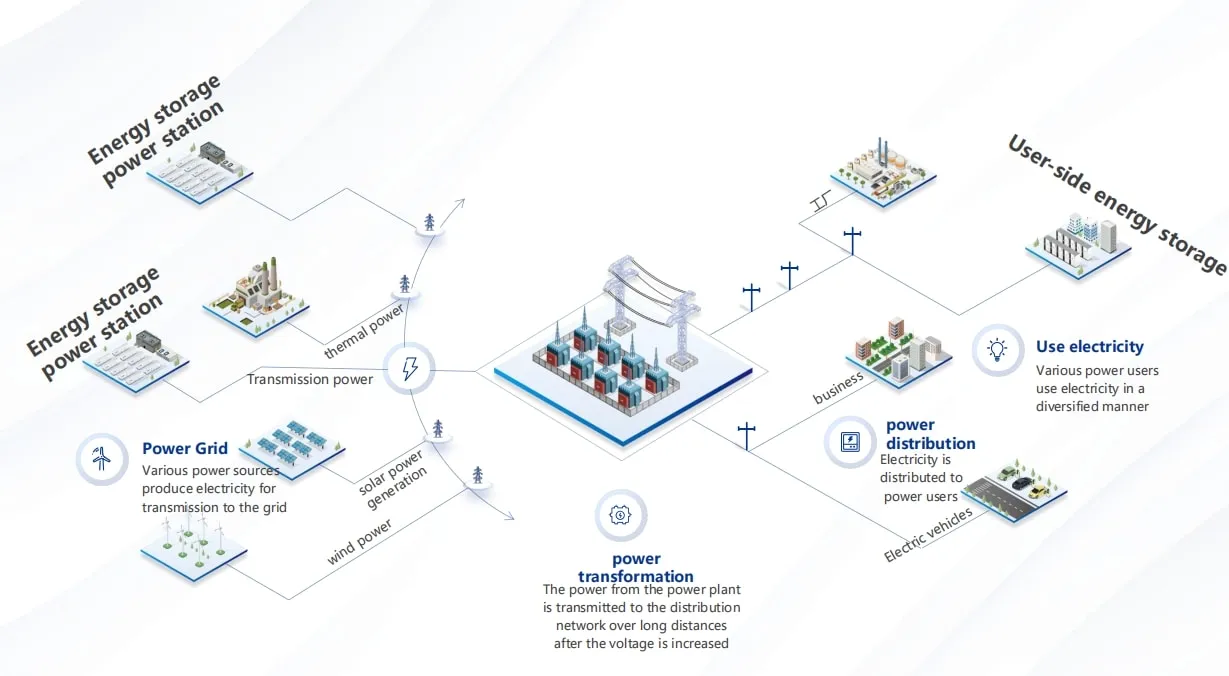

Full application scenario solution
Apolloess.com

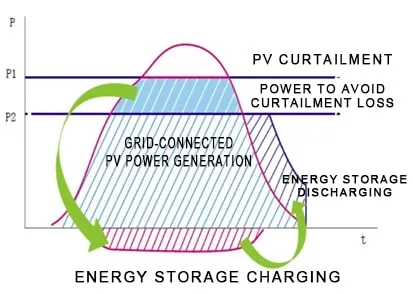

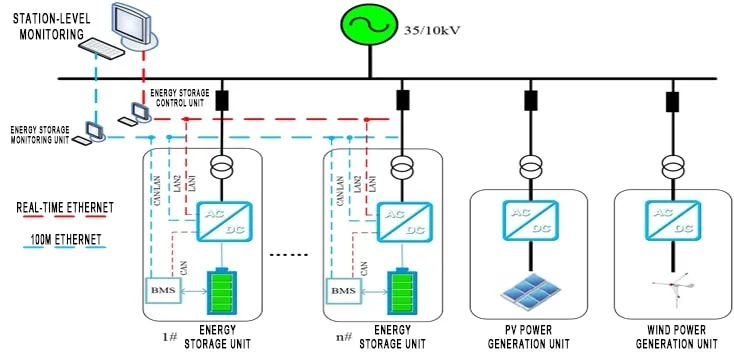

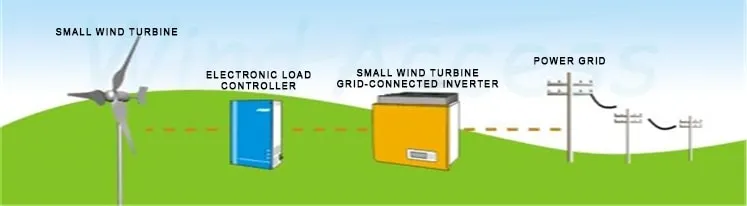

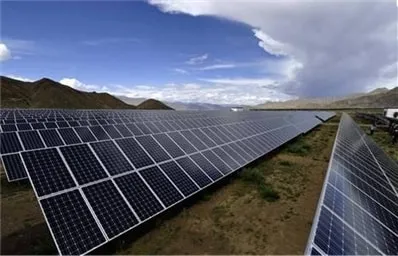

New energy power station storage solutions
Application scenario: large wind, solar and storage power station

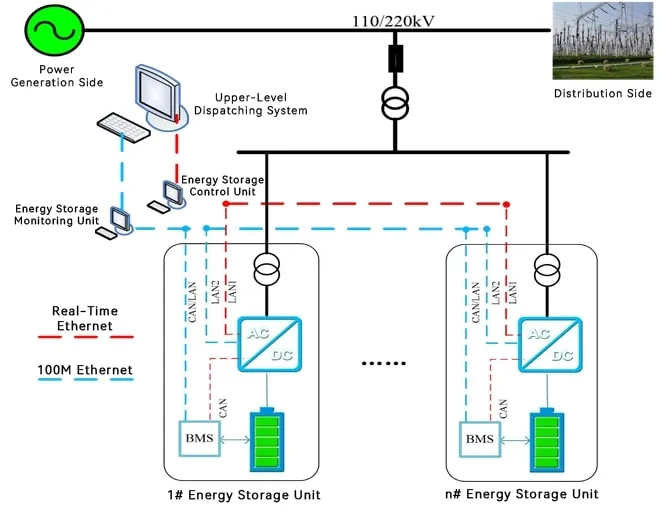

Source side energy storage solution
Application scenarios: power plants, urban peaking power stations
Source side energy storage solution
Application scenarios: power plants, urban peaking power stations

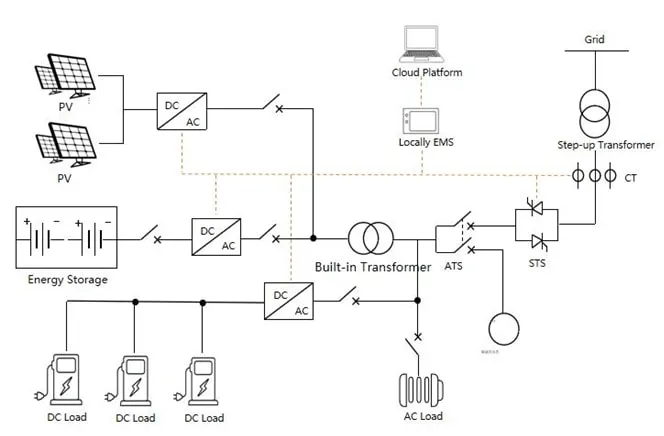

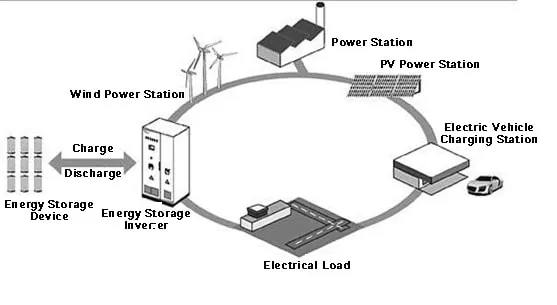

Distributed micro-grid solutions
Application scenarios: urban areas, large industrial parks, remote areas, etc
◉ Fast switching between grid and off-grid in milliseconds
◉ Support off-grid operation to cope with grid instability
◉ Coordinated control of various distributed energy sources

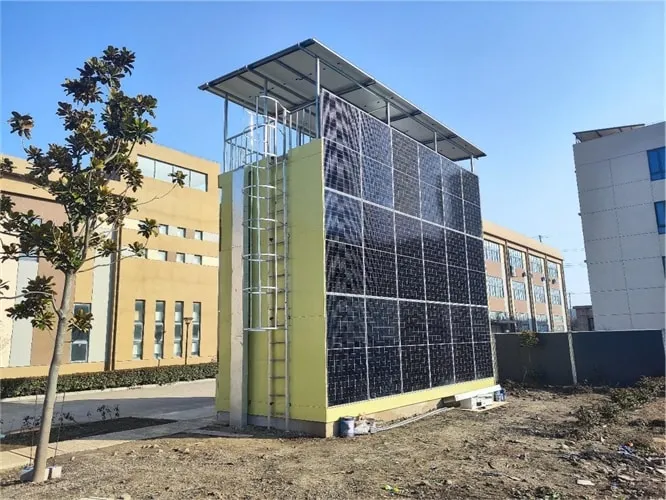

Concrete energystorage system

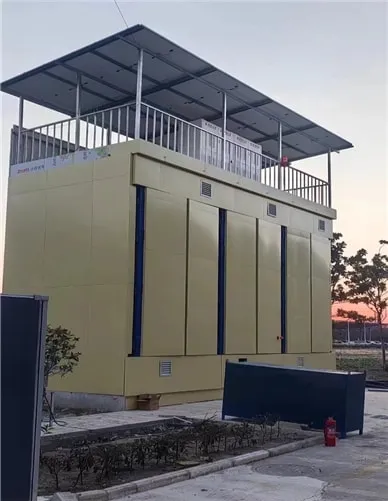

Nantong Changeda 6.45MWh Energy Storage Power Station

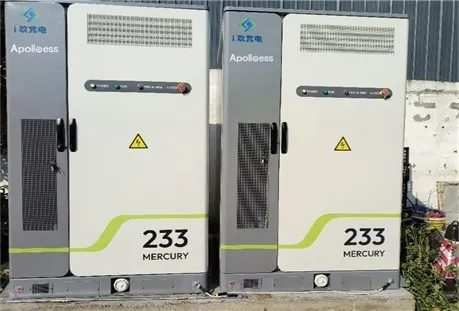

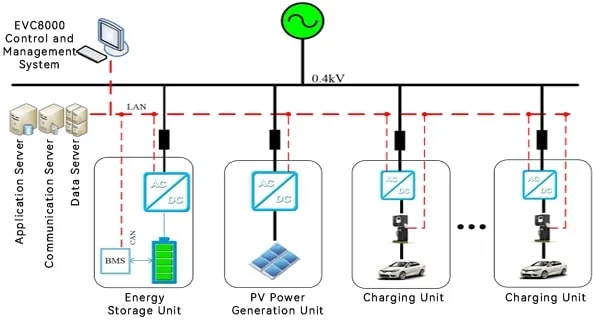

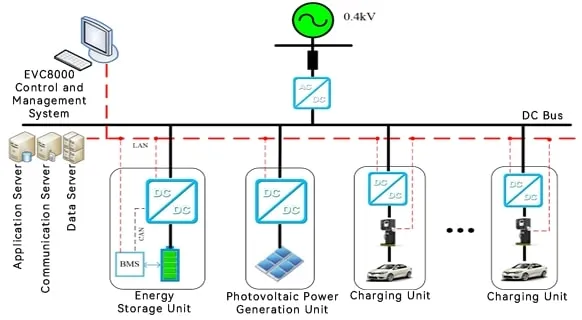

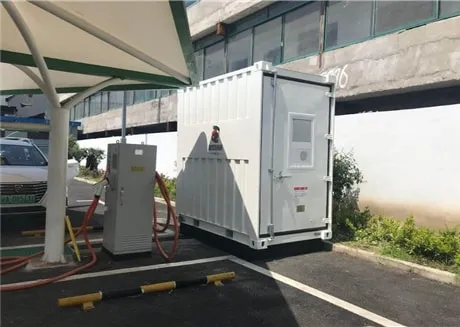

Optical storage and charging station solution
